What is Minimum Size Oil Press Machine?

Oil press machine, as their name indicates, is used to extract oils from the seeds. There are various kinds of oil press machines available in the market. Based on your use, you can procure an oil press expeller for either industrial use or for some domestic purposes. One of the most successful oil mill machinery is that of a single screw oil press machine. It is the minimum size oil press machine that can be used to make vegetable oils from various oil-bearing seeds, including soybean, palm kernel, groundnut/peanut, sunflower seeds, niger seed, mustard seeds, cottonseeds and more.

minimum size oil press machine for sales

Minimum Size Oil Press

The minimum size screw oil press machine produces maximum yield of oil per seed with an extremely low investment cost. It is quite successful based on the fact that it has less machine components compared to the other oil pressing machine, making it easy to maintain and easier to operate upon. It is now the most favorable oil press for small scale oil making workshops.

Working Principle of Minimum Size Oil Machine

The minimum size screw oil press works on the basic principle of extracting oil from the seed by crushing it with the help of a screw. The screw oil press machine basically constitutes a feeding hopper as well as a pressing cage, the screw and the motor.

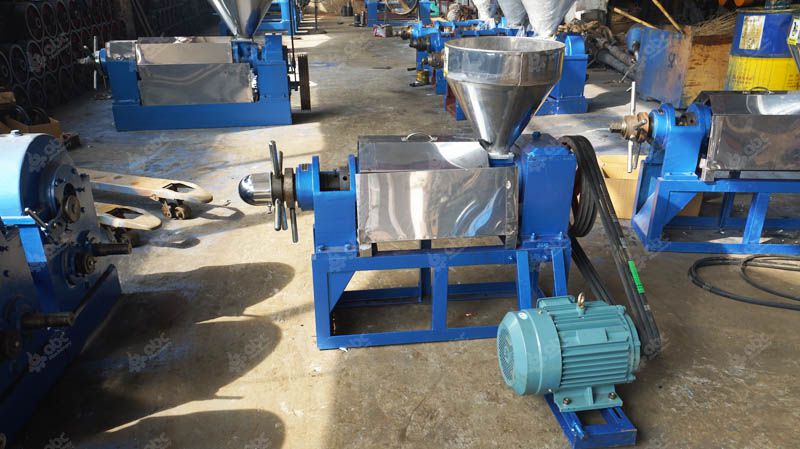

mini size oil press machine
Minimum Size Oil Press Backside

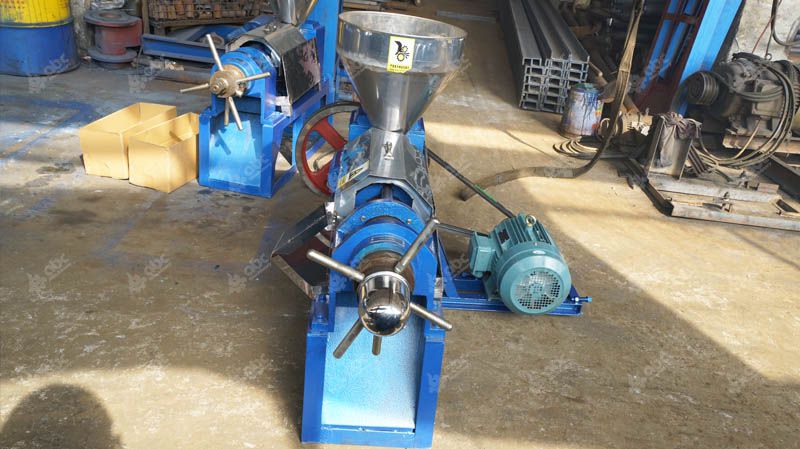

mini oil press machine side edge
Mini Oil Press Side Edge

The seeds or the material flakes pre-treated before and are sent to the squeeze chamber through a hopper. The screw then comes into play and pushes the seeds forward in the pressing cage. As the seeds are crushed and pressed by the screw, there is a lot of friction generated between the material flakes, the screw thread worm and the pressing bore. This activates the relative motion within the seeds. During this process the root diameter of the screw worm is enlarged gradually whereas the screw pitch is reduced. When the screw turns, the seeds, flakes move forward and flip outward. The surface also rotates during the movement of the screw which ensures that every particle of the material flake is acted upon.

During this process, the relative motion of the particles tends to move them in the same direction forward. The friction produces heat which helps the protein denaturation of material flakes, increases the plastic quality and reduces the viscosity. These factors increase the oil yield which is then squeezed out from the material flakes and pumped out from the gaps in the pressing rings. The efficiency of the mini size screw oil press machine is attributed to its effective principle application. (You may also like Mini Oil Refinery Machine >>)

Features of Mini Size Oil Press

The primary feature of the mini size oil press machine is the high yield of oil and low residual wastage. The oil extracted is pure with low amounts of impurities which are then processed out. The other features include

  • Mobility: Due to its size, the machine features high mobility and can be transported easily.
  • Labor Saving: The headcount reduces as most of the process is automated requiring just a couple of personnel.
  • Less Land: 10 square feet of land is what is required for the installation of the machine.
  • Great Quality: The purity factor is stressed upon yielding out pure oil.
  • Performance: The parts are resistant to wear and tear with an updated heat treatment reducing the maintenance cost of the machine.
  • Energy Saving:  Optimal and proper gear ratio helps in saving the energy costs.
  • Maximum Yield Rate: The yield rate is approximately 8% higher than the other current machines.

The minimum size oil press machine encompasses all the factors required for an increased and productive yield from the material flakes and oil seeds. It is an ideal choice for farmer, business investor or professional oil making company. From the low operational cost and small size to the high quality yield, the small oil press machine is extremely useful for the oil extraction from various seeds, including peanuts, soybeans, cottonseed, palm kernel, mustard seeds, rapeseeds, niger seeds, black seeds, sunflower seeds and more. (Read more about How to Start Mini Soya Oil Making Business >>)

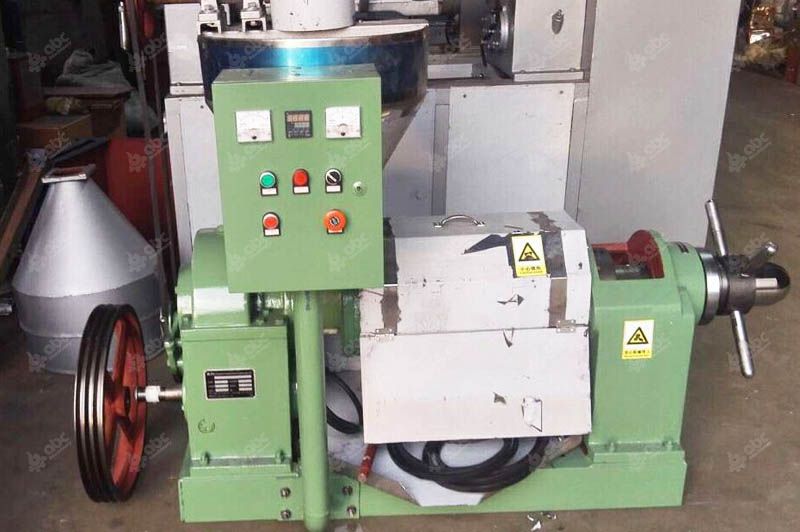

soybean oil press machine in mimimum size for soybean oilMinimum Soybean Oil Press to Hungary

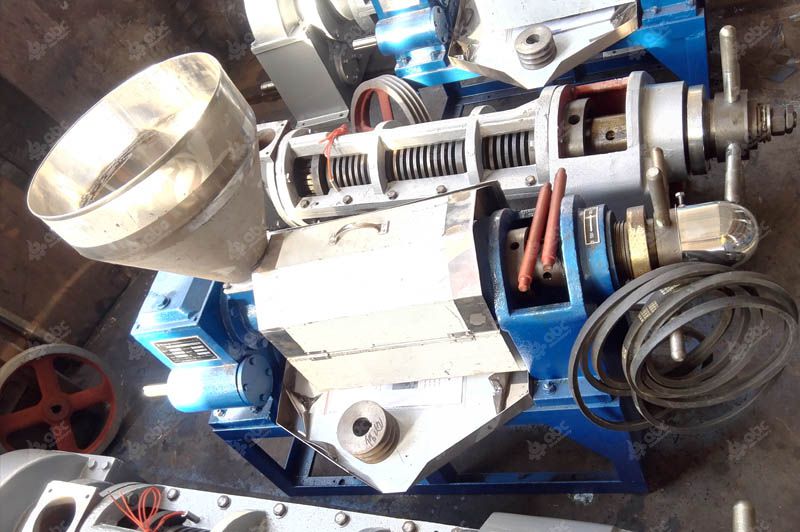

mini size soya oil expeller at factory price
Mini Soya Oil Expeller to America

If you have any questions about our screw oil press machine in minimum size, please contact us for detailed information!
