Sunflower Oil Refining Machine not only can be used to refine crude sunflower oil, but also ideal for other crude edible oil refining, including soybean oil, palm oil, palm kernel oil, coconut oil, cottonseed oil, groundnut/peanut oil, mustard oil etc., (Related Article: Edible Oil Refinery Plant Setup Cost >>). Sunflower oil refining machine has standard refining process, high refining speed and can produce high quality refined cooking sunflower oil. Now, more and more sunflower oil manufacturer or producers have adopted it for sunflower oil production. However, how much do you know about sunflower oil? Here, we will offer a detailed introduction of sunflower oil refinery machine and its detailed process. (you may also like: Sunflower Oil Making Machine >>)

sunflower oil refining machine at fatory price
Sunflower Oil Refinery Plant

Sunflower Oil Refining Process

Sunflower seed oil has a light color. The degumming, deacidification, decolorization and deodorization process of sunflower oil processing are basically similar to soybean oil refinery plant. But sunflower oil usually generally needs dewaxing process to reach the national standards for edible cooking oil. (related article: How to Make Sunflower Oil >>)

sunflower oil refining process flow chart

  • Acid Degumming: sunflower oil should be treated with a diluted solution of citric or phosphoric acid to hydrate the lecithins or phospholipids
  • Alkaline Neutralization: the mixture obtained must be treated with caustic soda to neutralize the acidity produced by the acid used and even the acidity that emanates from the oil itself, which comes from free fatty acids.
  • Washing and Drying: the neutral oil must be washed with abundant water to be able to eliminate the remains of the soaps created in the previous stage. The wet oil must be passed through a drying tower, in which any remaining moisture will be removed at 90℃ under a partial vacuum.
  • Bleaching: The neutral oils contain minimum amounts of pigments that are colorants, traces of phospholipids, soaps and minerals, all of which must be removed to obtain an oil that is stable and lasting overtime in its functional and organoleptic characteristics.
  • Deodorization: The volatile substances that are responsible for flavors, as well as odors, are removed in this process. This is done by employing an injection of steam that passes through the oil taking away the volatiles and condensing them separately.
  • Dewaxing: The refined oil must be cooled down to 5~8℃ with slow agitation, it must at that temperature for a certain number of hours. The small crystals that are formed from the wax will grow so that they can later be separated by filtration or centrifugation, which can remove the wax and make the color bright.
Sunflower Oil Dewaxing Process Flow: Crystallization Crystal Growing → Filtration Cold Water Circulation

how to start your own production line with best business plan

1~30TPD Small Scale Sunflower Oil Refining Machine at Factory Price

Small scale sunflower oil refinery machine is designed for small and medium scale Sunflower Oil Processing Plant. It is the batch type oil refining equipment, but has all the functions of continuous oil refinery plant.  (Related Machine: Mini Oil Refinery Plant Cost >>)

small scale sunflower oil refinery machine at factory
1TPD Small Scale Sunflower Oil Refining Machine

Hot Sale Capacity of Small Sunflower Oil Refinery Plant (batch design): 1TPD, 2TPD, 3TPD, 5TPD,10TPD,15TPD,20TPD, 30TPD.

Mini/Small Sunflower Oil Refining Plant Advantages

  • Takes up small space areas, saves labors and efforts, easy and flexible operation
  • Suitable for different oil refining, which is helpful for business development and expanding
  • The combination of chemical and physical refining process can greatly improve the quality of refined oil
  • The independent design of each refining stage is conducive to expanding the production scale in the later stage
  • Quick return on investment, suitable for small and medium scale cooking oil production business, factory and users

Setup Small Scale Sunflower Oil Refinery Projects at Low Cost

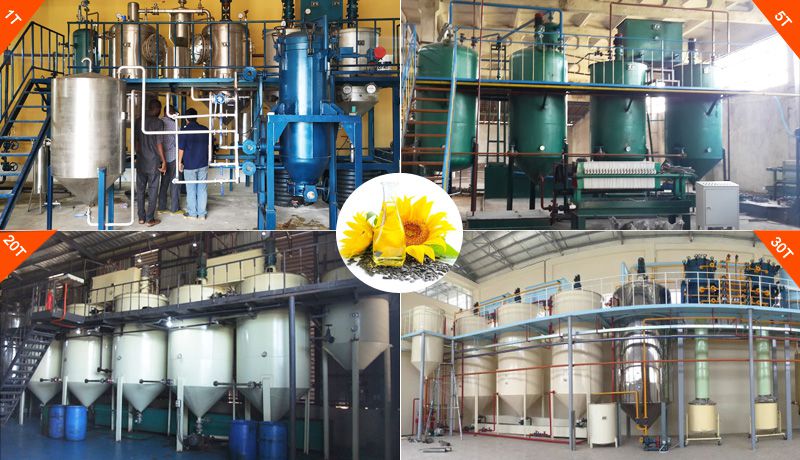

small scale sunflower oil refinery plant projects
Small Scale Sunflower Oil Refinery Plant

Sunflower Oil Produciton Plant Projects ABC Machinery Built Worldwide
1TPD Sunflower Oil Refining & Filling Plant to Tanzania

10TPD Sunflower Oil Production Line with 3TPD Sunflower Oil Refining Machine in Uganda
10TPD Sunflower Oil Manufacturing Plant with 3TPD Sunflower Oil Refinery Plant in Moldova
100TPD Automatic Sunflower Oil Extraction and Refining Factory Setup in Kazakhstan

Small Scale Sunflower Oil Refinery Machine Functions

  • Two refining tanks work interactively or work simultaneously to speed up the refining time
  • The decolorization tank works under vacuum and automatically inhales adsorbent (white soil)
  • Automatic slag filter can filter the white soil mechanically, no manual operation
  • Soap foot salting out tank is used for refining foot to get part of clean oil and reduce the consumption of refined oil.
  • Heat conduction oil furnace is equipped with steam generator, without the need for steam boiler
  • Other auxiliary equipment compressors, vacuum pumps, infusion pumps, electronic control cabinets and operating platforms for installation materials are all included; Users do not need to purchase other equipment to use.

inquire about the price and cost

Sunflower Oil Processing Machinery Manufacturer - ABC Machinery

ABC Machinery has been engaged in the manufacturing of oil processing machinery for more than 20 years. Our company focuses on the design, development and research of machinery, aiming at providing users with equipment of good quality, high efficiency and easy operation. Over the years, our factory has developed advanced high-tech Sunflower Oil Milling Machine to meet the market demands.

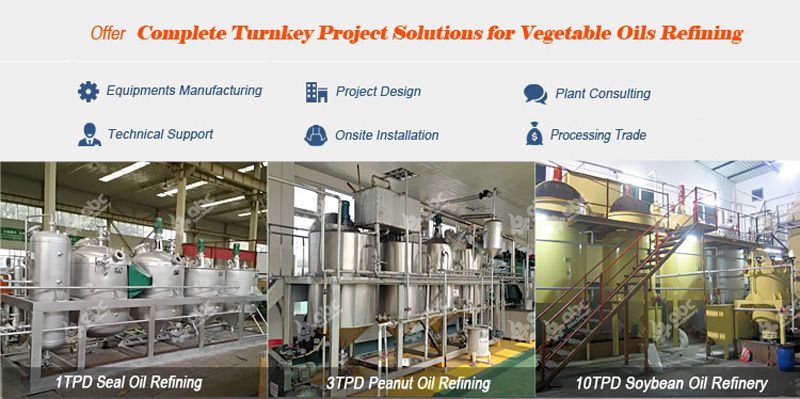

Sunflower Oil Refinery Machine Manufacturer and Supplier
ABC Machinery - Reliable Edible Oil Refinery Machine Manufacturer

ABC Machinery boasts strong capacity to undertake the construction, reconstruction and extension of all scales sunflower oil processing plant projects, from small scale to large scale. And, we also provide technical instruction and consultancy for all customers. Our factory is located in Anyang city, Henan province, we wholeheartedly welcome all new and old customers to visit us.
