Turnkey Soybean Oil Processing Plant Project from Design to Production

Provide Turnkey Soybean Oil Processing Plant Solution

Soybean Oil Processing Plant Design and Layout Planning

A well-designed soybean oil processing plant determines the efficiency, yield, and safety of the entire soybean oil extraction project. For plants processing 200–500 tons of soybeans per day, engineering design and layout planning directly influence material flow, energy utilization, and production uptime.

Process Route Determination

A typical soybean oil extraction process flow involves four major stages: pretreatment, pressing, solvent extraction, and refining. Each stage requires careful coordination to minimize losses.

• Pretreatment: Cleaning removes 98% of impurities; conditioning brings moisture to 10–12% for efficient cracking.
• Pressing and Extraction: Mechanical expellers handle up to 50 tons/hour; solvent extractors achieve oil recovery rates over 98%.
• Refining: Neutralization and bleaching reduce free fatty acids to below 0.05%, meeting food-grade standards. Operating at 240°C under 3 mbar vacuum removes volatiles and ensures odor-free oil.

Factory Layout Optimization

Efficient soybean oil plant layout design reduces material transport by up to 15% and enhances operator safety. Process halls are arranged in linear flow—from seed intake to refining—minimizing cross-contamination. Tank farms are often located 20–30 meters away from main buildings to comply with fire safety standards.

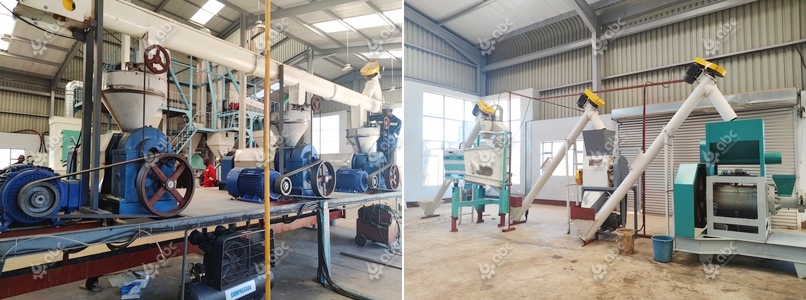

Oil Pressing and Cleaning Zone in Plant

Environmental and Safety Engineering Design

Environmental design plays a critical role in large-scale soybean oil factory engineering design. For example, solvent vapor recovery units achieve >95% solvent recycling, while wastewater treatment units meet COD < 100 mg/L discharge standards. Explosion-proof electrical systems and nitrogen blanketing reduce fire risk in extraction zones.

• Energy Balance: Heat exchangers reclaim up to 70% of thermal energy.
• Waste Reduction: Soybean meal by-product yield exceeds 75% of raw input.
• Safety Distance: Minimum 15 m between extraction and boiler sections.
• Noise Level Control: Below 80 dB at operator stations.
• Maintenance Access: 1.2 m clearance for all major machinery.

Maximize layout efficiency and plant safety—consult our engineering team to create your optimized soybean oil plant blueprint today.

Key Equipment Selection and System Integration

Selecting reliable soybean oil extraction machinery defines long-term plant performance. Core equipment includes screw presses, extraction towers, and refining systems with integrated automation.

High-capacity screw presses, such as 200–300 kW units, deliver 10–20 tons/hour throughput with energy consumption below 35 kWh/ton. Solvent extractors with continuous counterflow design achieve up to 98.5% extraction efficiency.

Automation is crucial—process control via SCADA (Supervisory Control and Data Acquisition) systems reduces labor demand by 20% while improving oil quality consistency. The soybean oil refining system integration ensures precise control of parameters like temperature (within ±2°C) and vacuum pressure (below 5 mbar).

Energy recovery systems using heat exchangers reclaim approximately 60% of process heat, cutting steam demand by 15%. The soybean oil process automation layer interconnects all operations—from feed input to finished oil dispatch—using industrial Ethernet protocols.

Enhance performance and reduce downtime with integrated automation—connect with our experts for customized equipment integration solutions.

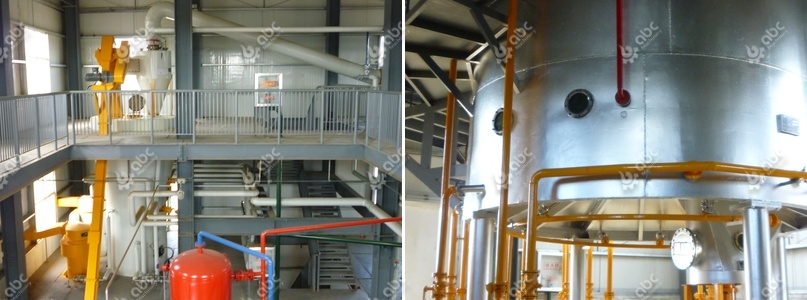

Commercial Soybean Oil Solvent Extraction Plant Setup

Project Construction and Production Implementation

Once design and equipment are finalized, soybean oil plant construction follows a structured timeline—typically 8–12 months for a 300-ton/day facility. Site preparation, foundation casting, and steel framework erection take around 90 days.

During commissioning, equipment calibration and performance verification ensure stable operations. Soybean oil factory commissioning includes solvent balance tests, oil quality sampling, and control system debugging. Production startup achieves full capacity within 30 days after test runs, ensuring throughput exceeds 95% of rated design.

Launch your production faster with our complete plant commissioning support and on-site engineering supervision.

Cost Control and Production Optimization Strategies

Controlling soybean oil production cost is vital for global competitiveness. Cost structure analysis shows that energy (25%), raw materials (60%), and maintenance (10%) dominate operating expenses. Efficient process optimization can reduce total cost by up to 8%.

• Energy Efficiency: Installing variable frequency drives (VFDs) on major motors saves 12–15% power.
• Process Optimization: Heat recovery networks reduce steam use by 20%.
• Operational Excellence: Predictive maintenance using vibration monitoring extends equipment lifespan by 30%.

Long-term profitability depends on precise process monitoring and proactive maintenance strategies. Implementing OEE (Overall Equipment Effectiveness) tracking systems ensures production uptime above 92% while maintaining consistent oil quality.

Optimize costs and boost operational efficiency—partner with us to design a sustainable soybean oil plant performance strategy.

At every stage—from conceptual design to operational optimization—the soybean oil extraction process requires precision engineering, efficient equipment integration, and sustainable management strategies. A well-planned soybean oil processing plant not only achieves higher yields but also ensures long-term profitability and environmental compliance.
