20TPD Automated Sesame Oil Manufacturing Plant in Thailand

HOME > Projects

20TPD Sesame Oil Manufacturing Mill Plant Setup in Thailand - Project Report

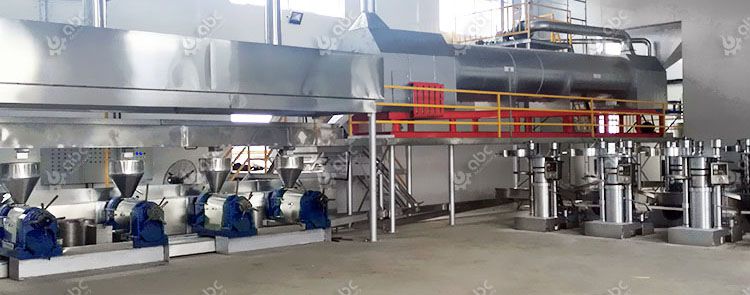

automatic sesame oil manufacturing plant

  • Location: Thailand
  • Raw Material: Sesame Seeds
  • Final Products: Roasted and Toasted Sesame Oil
  • Capacity: 20 tons per day
  • Sesame Oil Manufacturing Process: Cleaning - Washing - Roasting - Cooling - Pressing - Filtering - Dewaxing - Filling

20TPD Automatic Sesame Oil Manufacturing Plant Project

This 20TPD Sesame Seed Oil Mill Plant was completed in April 2019 in Thailand. In 2018, this customer visited our factory and checked out all the necessary equipment at our factory. Since she want to rebuilt a complete new efficient sesame oil manufacturing plant based on the original oil processing plant. So, in order to offer the practical factory layout and maximize the output, our engineers and sales went to Thailand twice to help to ensure all the details, especially about the factory design, equipment selection and more. Soon, she ordered a automated sesame oil manufacturing plant to expand her sesame oil production requirements. (Related Equipment: Sesame Oil Press Machine >>)

Sesam Seeds Oil Types

Based the customer’s requirements, this fully automated sesame oil manufacturing plant should produce four kinds of sesame oil to fit the market demands.

  • Dark Toasted Sesame Oil by Water Extraction
  • Toasted Sesame Oil by Screw Oil Press
  • Light Sesame Oil by Hydraulic Oil Press
  • Refined Sesame Oil after Refining Process

inquire about the price and cost

Sesame Oil Manufacturing Machine Installation

The main equipment for this sesame oil processing plant includes Cleaning Screen, Destoning Machine, Water Filtering and Drying Machine, Roasting Machine, Screw Oil Expeller, Hydraulic Oil Press, Oil Filter, etc. Below is the whole sesame oil plant installation process.

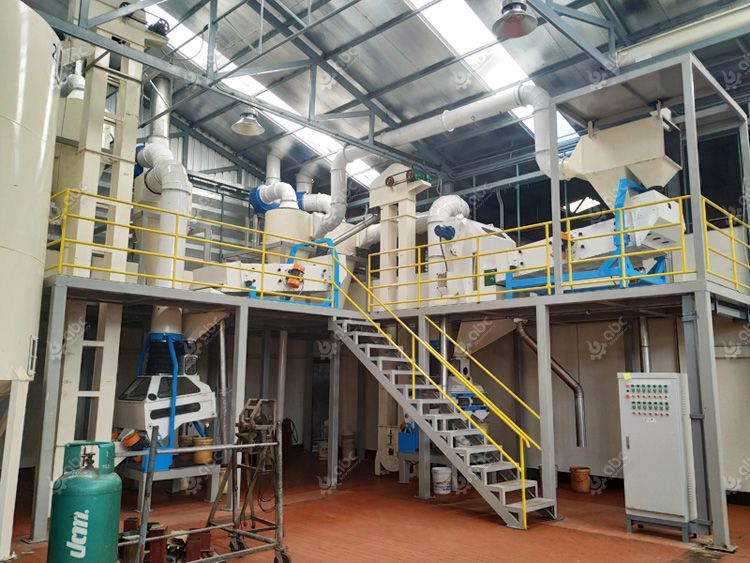

sesame seeds cleaning section
Sesame Cleaning Section

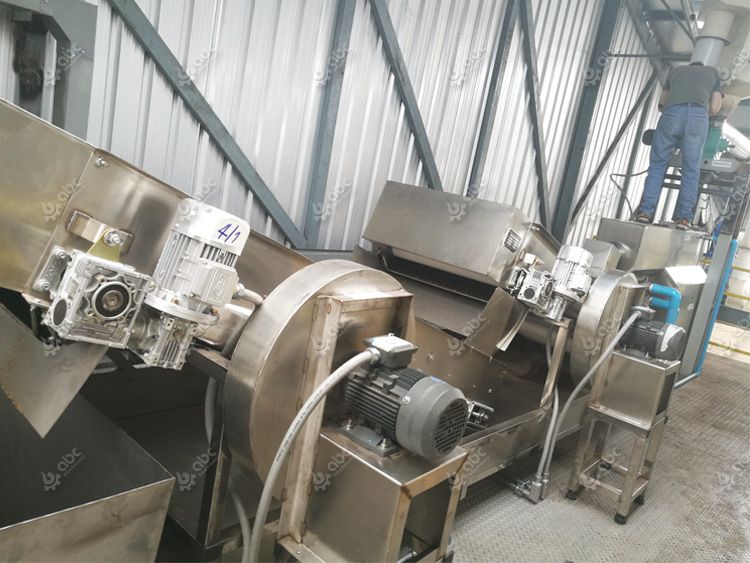

sesame seeds washing machine
Sesame Seeds Washing and Drying Machine

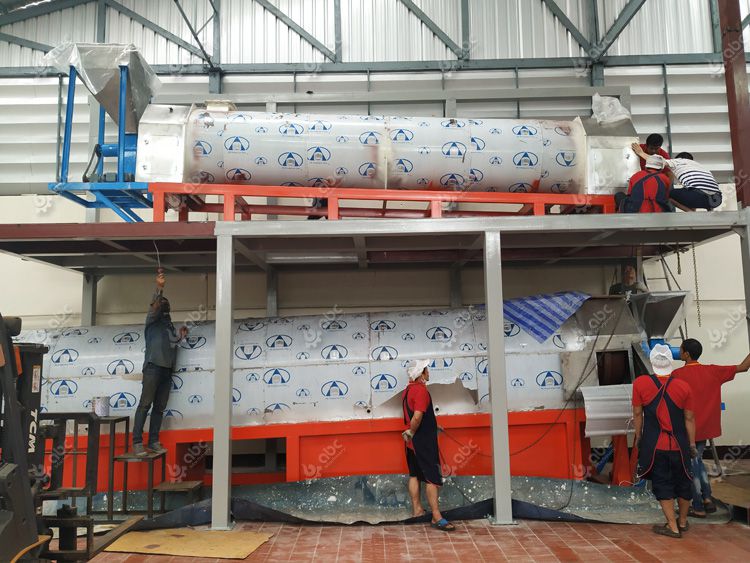

Sesame Seeds Roasting Machine
Sesame Seeds Roasting Machine

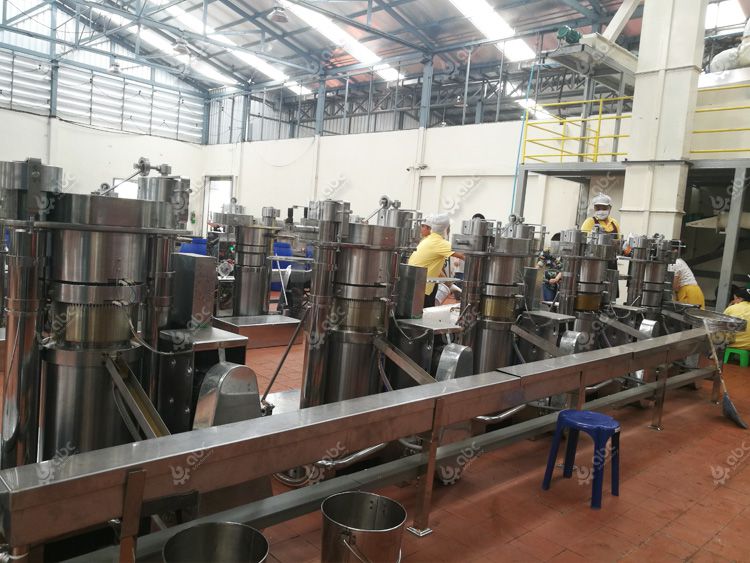

hydraulic oil press machine for sesame oil
Hydraulic Oil Press for Sesame Oil
sesame oil press machine
Screw Oil Press for Sesame Oil

Sesame Oil Manufacturing Plant Cost

The cost to setup a sesame oil manufacturing plant should take many aspects into consideration, including capacity, sesame oil extraction process, sesame oil manufacturing machinery, requirements for final sesame oil, automation level, etc. So, the exact cost varies from different considerations. Generally, the investment cost of a 10-20ton/day complete sesame oil mill plant is about $100,000~$200,000 or above.

how to start your own production line with best business plan

Sesame Oil Plant Production Video


Sesame Seeds and Sesame Oil Production Worldwide

world sesame oil producersWith more than 6 million tons produced yearly, the sesame plant is considered a significant cash crop for many countries. The sesame plant, or Sesamum Indicum, is a flowering plant native to India. The sesame plant has been domesticated around the world, and grows best in tropical locations. The major producers of sesame around the world are in sub-Saharan Africa and Southeast Asia. Tanzania leads the world in production, with nearly 1,000,000 tons produced yearly. Myanmar, India, Sudan, China, and Nigeria are also major producers. These countries are also the major producers of sesame oil.

Japan is the world's leader in importing sesame products, as sesame oil is a significant component of Japanese cuisine. China is the second largest importer. They generally import higher quality seeds and export their lower quality products throughout Southeast Asia. Other major importers of sesame products are the US, Canada, France, The Netherlands, and Turkey. Most producers in the Americas, Africa, Western Asia and India grow the white or lighter varieties of sesame seeds, where China and Eastern Asia grow the black or darker varieties. The price of sesame seeds varies greatly by perceived quality; low quality seeds generally cost around $800 per ton, with higher quality seeds often selling for more than twice that amount.

white and black sesame oil
White Sesame and Black Sesame Oil

In Asia, while some sesame seeds are used in baked goods or sprinkled onto sushi rolls, much of the sesame is used as sesame oil. Many dishes in Asian cuisine have sesame oil as a standard ingredient, and tempura chefs in Japan will also use sesame oil for deep frying.
