Edible Oil Filter for Sales

What is edible oil filter? Edible oil filter is plate and frame oil filter press that is mainly used to for crude vegetable oil filtering. It can be connected with oil press machine to remove the solids and impurities contained in the extracted crude oils.

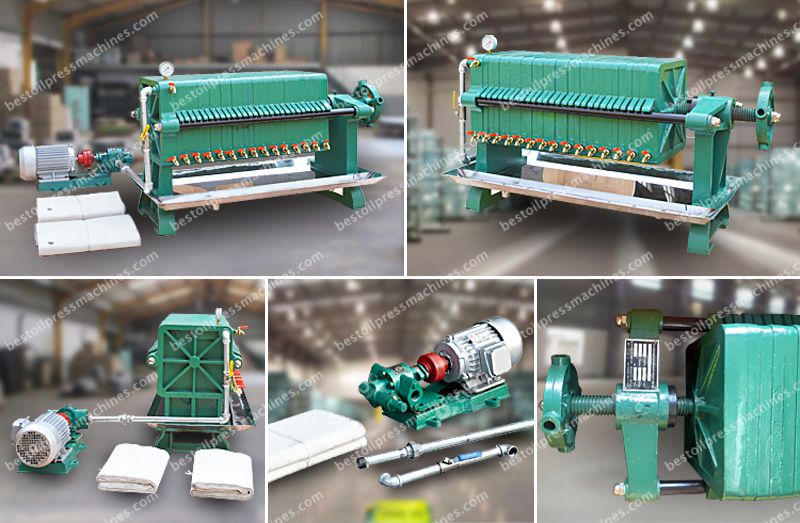

edible oil filter machine for sales at factory price
Edible Oil Filter Press for Sales (YLB307)

Technical Data of Edible Oil Filter Machine

Model YLX65 YLB470 YLB307L YLB307 Z26
Capacity 800kg/h 450kg/h 240kg/h 180kg/h 85-100kg/h
Filtration Area 20 m² 7m² 4m² 3m² 1 m²
Plate Quantity 29pcs 18pcs 18pcs 18pcs 8pcs
Filtering Pressure 0.5MPa 0.3MPa 0.1~0.3MPa 0.1~0.3MPa 0.1~0.3MPa
Power 1.5Kw 1.5Kw 1.5Kw 1.5Kw 0.55Kw
Outline Dimension 2900*920*1040 m³ 1650*700*780mm³ 1520*570*640mm³ 1270*570*640mm³ 900*410*750 m³
Weight 2950kg 1040kg 520kg 430kg 430kg

Edible Oil Filter Machine Structure

This plate and frame edible oil filter press is designed with a fine-mesh filtering cloth to remove the impurities. The filtrating cloth forms many rooms between the plates, the crude oil goes through the filtering cloth in the force of oil pump and expelled out from the faucet automatically. It is particularly efficient in edible oil refining and also the BEST choice for many vegetable oil pressing factory.

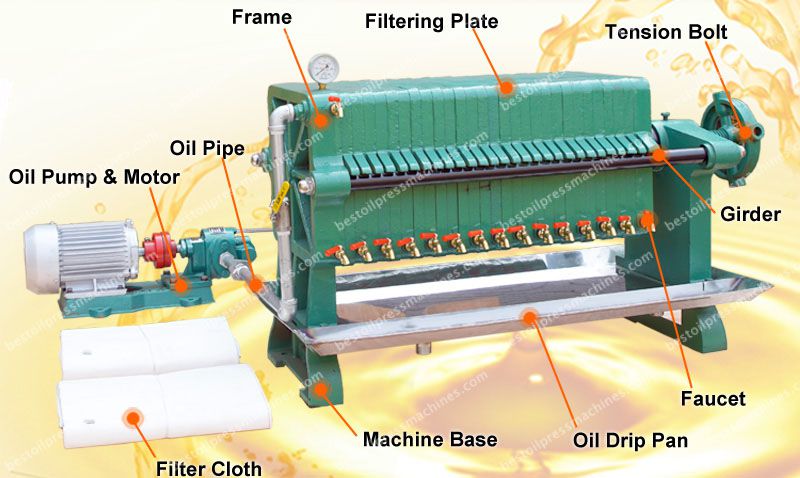

structure of edible oil filter machine

Structure of Edible Oil Filter Machine

Edible Oil Filter Machine Features

  • Efficiently to remove impurities in the crude oils, including peanut oil, soybean oil, palm kernel oil, palm oil, sunflower oil, coconut oil, mustard oil, rape seed oil and more.
  • Best oil filtration equipment for oil pressing plant and oil refinery plant
  • Designed with oil pump and motor for large filtrating force.
  • Can be easily connected with different types of oil expeller
  • Continuous oil filtration, easy operation, compact size and factory price

Application of Oil Filter Machine

edible oil filter machine

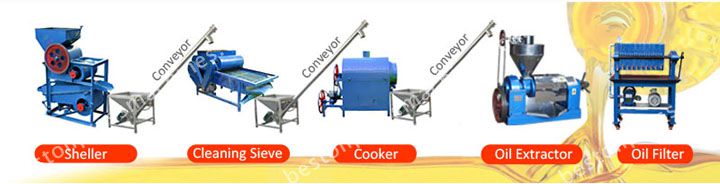

Oil Filter in Small Oil Pressing Line - Z26

edible mustard oil filter machine

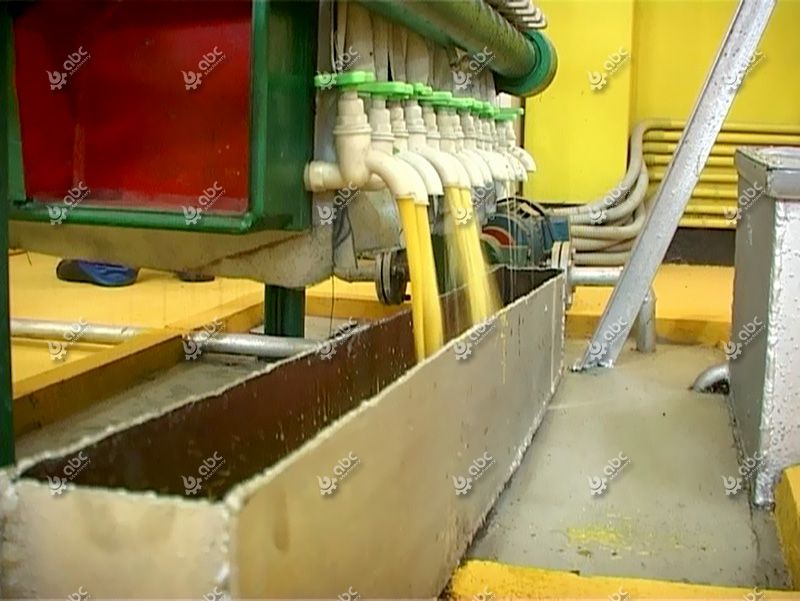

Edible Oil Filter Press in Mustard Oil Mill Plant - YLB307

edible sunflower oil filter machine

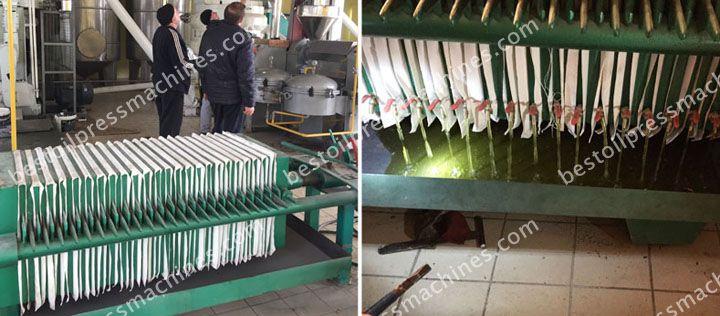

Oil Filter Machine in Sunflower Oil Making Plant

What We can Supply for Edible Oil Filter Press?

  • Sufficient and factory price spare parts
  • Technical supports for the installation and operation

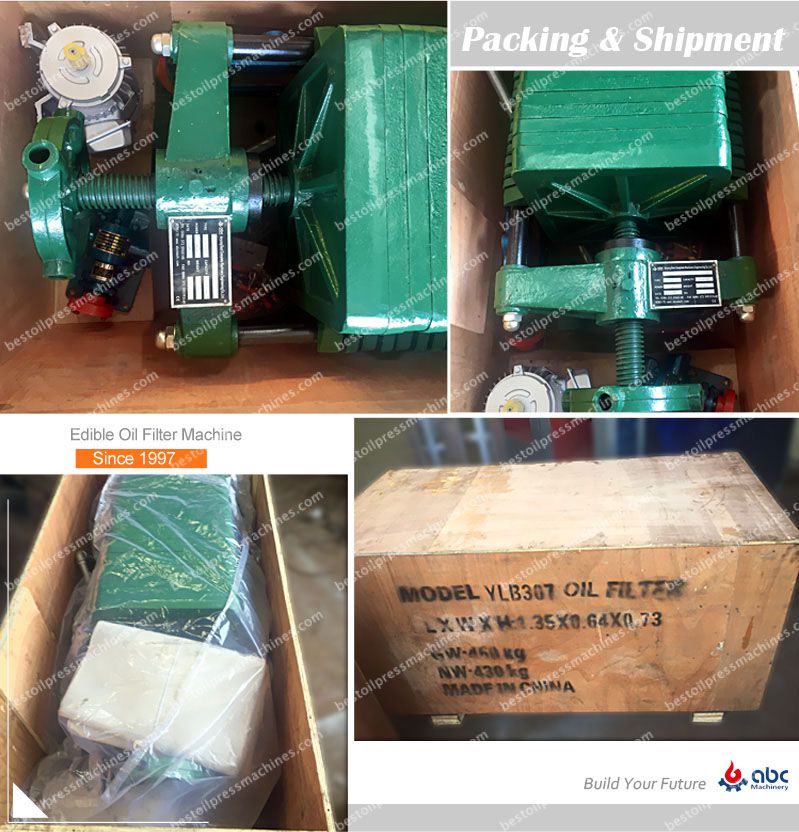

packing of oil filter machine

Installation and Operation Tips of Edible Oil Filter Press

Below is a video that takes YLB307 Oil Filter Machine to show us the installation and operational tips about edible oil filter press.

Our oil filter machine can be used to remove impurities from the crude oils efficiently. It is widely used in vegetable oil pressing plant or cooking oil refinery plantFor the detailed price of parameters, please get in touch with us anytime!
