Oil Filter Machine

HOME > Products > Auxiliary Equipment

Oil filter machine is the press machine used to filter oils. Generally, oils can be divided into edible oils and industrial oils. Accordingly, the oil filter has two types, one is for edible oils processing, and the other is used in industry. Edible oil filter usually adopts centrifugal, vacuum and other types. Industrial oil filter has much more types. Here, we mainly introduce oil filter press machine that is used for edible oil processing. Based on the difference of working principle, edible oil filter machine has plate and frame oil filter press machine, air pressure oil filter machine and centrifugal oil filter machine, and so on.

Plate and Frame Oil Filter Machine

oil filter press for sales at factory price

Plate and Frame Oil Filter Machine

Plate and frame oil filter machine is also called plate filter press or frame oil filter. It is usually being used as oil purifier for edible oils or biodiesel. ABC Machinery supplies various models of plate and frame filter presses in different sizes and varied capacities. Besides, we can also offer frame filter press according to customers' requirement. We are your trusted supplier in China.

Model YLB470 YLB307L YLB307 Z26
Capacity 450kg/h 240kg/h 180kg/h 85-100kg/h
Filtration Area 7m² 4m² 3m² 1 m²
Plate Quantity 18pcs 18pcs 18pcs 8pcs
Filtering Pressure 0.3MPa 0.1~0.3MPa 0.1~0.3MPa 0.1~0.3MPa
Power 1.5Kw 1.5Kw 1.5Kw 0.55Kw
Outline Dimension 1650*700*780mm³ 1520*570*640mm³ 1270*570*640mm³ 900*410*750 m³
Weight 1040kg 520kg 430kg 430kg

Plate and Frame Oil Filter Machine Working Video - Z26 Oil Filter

Advantages of Plate and Frame Oil Filter Press

  • Comes with oil pump, motor and tow sets of filtering cloth
  • Automated filtering system is easy to operate
  • Compact structure is lightweight and with small foot print
  • Stainless steel oil drip tank is convenient to clean, keeping all the way clean
  • Not only can filter crude oils, but also efficient to filter refined oils. The filtering result is the same with oils refined through decolorization for separating and bleaching in oil refinery plant.
  • Great supporting equipment for different screw oil press, such as YZS-130, YZS-105, YZS-85, YZS-95A, etc.
  • Quite wide application to various crude vegetable oils, including peanut oil, sesame oil, sunflower seed oil, canola oil, cottonseed oil, palm kernel oil, coconut oil, mustard oil, almond oil, etc..

inquire about the price and cost

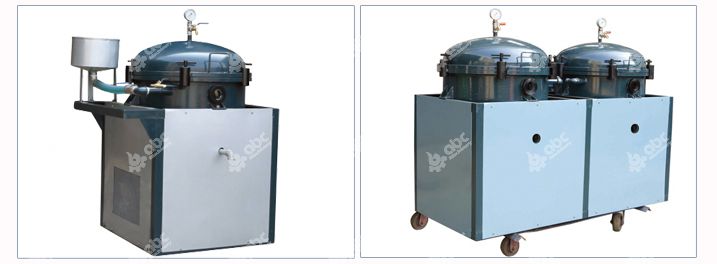

Air Pressure Oil Filter Machine

air pressure oil filter machine for sales

Air Pressure Oil Filter Machine

Air pressure oil filter, newly developed by ABC Machinery, is one of the most efficient oil filters for edible oil filtration. The air compressor built in air pressure oil filter makes air to go through cylinders into crude oil drum, further, the crude oil is push flow out from filtering cloth. During filtering, the particles and impurities contained in crude oil will be blocked on the filtering cloth and gradually form a layer of residues that is itself a filtering cloth. The filtering efficiency of air pressure oil filter is increasing by pressure rising, which reduced by the thickness of residues. Therefore, the residue should be removed out timely.

Model Capacity Power Weight Outline Dimension Voltage Pressure Oil Temperature Filtering Barrel Diameter
RF600-D 180-220kg/hr 2.2kw 350kg 1550*690*1080mm3 380V 0.2-0.4Mpa 70-80℃ 610mm
RF600-S 100-120kg/hr 1.5kw 187kg 855*690*1080mm3 380V 0.2-0.4Mpa 70-80℃ 610mm

Features of Air Pressure Filter Machine

  • Makes use of positive pressure for maximized filtering efficiency
  • Easy and convenient to clean, no oil slags and blockage
  • The oil by air pressure filter is clear and pure
  • Suitable for various crude oils extracted by screw oil press machine
  • Also superior to filter oils with solid impurities

inquire about the price and cost

Centrifugal Oil Filter Machine

Model  Capacity Power Weight Outline Dimension
RFLY600 25Kg/time 3kw 122kg 840×750×900mm3


centrifugal  oil filter machine at factory priceCentrifugal oil filter focuses on separation of suspended impurities by centrifugal. The type of centrifugal oil filter is perfect to match with various screw oil press machines. The highlights is characterized by centrifugal oil filter are as follows.

  • Eliminates troubles of filtering cloth cleaning and changing since this type of oil filter is no filtering cloth
  • Only a few minutes can fulfill once oil filtering
  • Can fully achieve the separation of oils and residues
  • Easy to operate and control
  • Highly efficient oil filtering equipment suitable for a great deal of crude oils, including rapeseed oil, cotton seed oil, soybean oil, peanut oil, flax seed oil, sunflower seed oil, corn germ oil, palm kernel oil, etc.

Centrifugal Oil Filter Machine Working Video


ABC Machinery is the most reliable oil processing equipment supplier in China. At the same time, we also provide low cost and high quality oil processing plant for various oil-bearing seeds, including peanut, cottonseed, flaxseed, soybean, palm kernel, mustard seed, sunflower seed and more. Certainly, as one of the imporant of oil processing, oil filter equipment we supply is also of superior quality. Any questions, please let us know!

  • 1.What is the cost of oil filter machine? Moreover, I want to be able to filter used vegetable oil.
    2. Which country are you located?
  • Hello, dear. We are a Chinese manufacturer and supplier focusing on vegetable oil processing machinery. Our factory is located in Henan, China.
    All of our oil filter machine can be used for vegetable oil purification and cleaning.
    The oil filter machine cost varies from the capacity and equipment type. Please inform us your specific demands, so we can offer you the exact price.
  • I need palm oil filter press machine
    Dom
    Bangkok, Thailand
  • Hello, sir. Thanks for your inquiry. All of our filter machines are suitable for palm oil filtering, but all of these machines listed on our website is designed for small scale oil filtering needs. If you want to large scale one, please contact us to ensure the capacity.
