What’s Single Screw Oil Press Machine?

Screw oil press, at present on market, refers to Small Oil Press, Automatic Oil Press, Auto-temperature Oil Press, etc. Single screw oil press machine is the most popular small oil press machine in today’s market, especially for small scale oil production plant. it maximizes the oil yield and requires low investment cost. It is mainly composed of pressing cage and a single screw that is equipped within pressing cage. Screw shaft is the most important part of screw oil press. Its technical data, rotate speed, building materials have a great impact on the pressure of pressing cage and the quality of oil and oil cake. (You may be also interested in Small Edible Oil Production Line Cost >>)

small oil press machine structure
Small Screw Oil Press Machine Structure

Raw Materials Small Oil Press Machine Can Process

The screw oil press machine is designed to extract oil from a very wide range of oil-bearing seeds, including soybean, peanut/groundnut, sesame seed, sunflower seed, niger seed, palm kernel, cottonseed, flaxseed, moringa seed, hemp seed, black cumin seed, mustard seed, coconut/copra, rice bran, corn germ and more. (Related Post: What Seeds and Nuts are for Vegetable Oil Processing? )

small oil press machine can process various materials
Various Materials Small Oil Press Can Process

Above listed raw materials are just some of the raw materials that our screw oil extraction machine can process. If you can't find your raw materials in the picture or list, please contact us to ensure whether its oil content and oil yield.

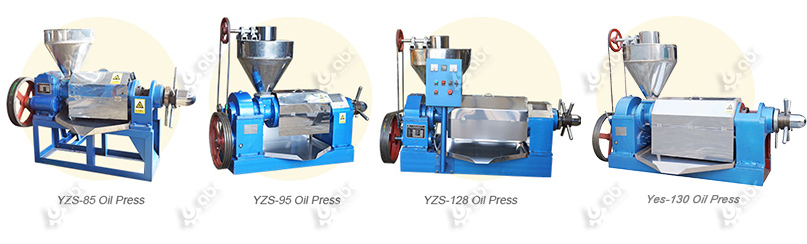

Small Oil Press Machine at Factory Price

single screw oil press machine at factory price
Oil Press Machine for Sales

Model Capacity Power Outline Dimension Weight
YZS-85 Small Oil Press 60-80kg/h 5.5Kw-4P 120*400*900mm³ 260KG
YZS-95 Small Oil Press 150-200kg/h (7.5-11)Kw-6P 1600*700*1350mm³ 530KG
YZS-105 Small Oil Press 210-300kg/h 15Kw-4P 1850*700*1350mm³ 580KG
YZS-128 Small Oil Press 300-375kg/h 15Kw-6P 2000*800*1170mm³ 720KG
YZS-130 Small Oil Press 450-500kg/h 18.5Kw-6P 2010*800*1380mm³ 820KG
YZS-150 Small Oil Press 750-850kg/h 30Kw-6P 2180*790*1790mm³ 1060KG



ABC Machinery offers different small screw oil presses to fit different oil production capacities. They are all certificated with ISO9001 and CE. If you are going to buy an ideal oil press machine, there are always one model suitable for your request BEST. For any questions or the latest price, please feel free to contact us anytime!

inquire about the price and cost

Small Oil Press Working Principle

When screw oil press is running, pretreated oilseeds material goes into the squeeze chamber through hopper and is pushed forward and pressed by pressing the screw. Because the material flake in pressing bore of small oil press is in motion. Under the pressure of pressing chamber, there are a great frictional resistances between material flake and screw worm, material flake and pressing bore, which results in relative motion within material flakes. (Read More about Soybean Oil Manufacturing Process >>)


On the other hand, the root diameter of screw worm is gradually enlarged while screw pitch is gradually reduced. When screw turns, thread and material flakes will move forward and flip outward again. At the same time, the material close to the surface of the press screw thread will rotate with pressing shaft rotation. In this way, each particle of material flake in the pressed chamber is not equal to the equal velocity, but in the same direction. So, there is also a relative motion between the particles of material flake. The heat produced by frictions meets the heat requirements of oil pressing, which helps the protein denaturation of material flakes, increase the quality of plastic and reduces viscosity and finally increase oil yield of single screw oil press machine. The oils are squeezed out from material flakes and discharged out from the gaps of pressing rings and pressing bar.


Small Screw Oil Press Machine Features

small oil press machine for sales
Small Oil Press Machine at Factory Price

The small screw oil press machine manufactured and supplied by ABC Machinery has a lot of features and advantages that can’t be matched by other oil press machines. It saves times and efforts, has high oil yields and low oil residual ratio. Most importantly, we offer the most CHEAP PRICE for our customers!

  • Labor Saving: the same output can save 62% of the labor force, and one to two people can organize production.
  • High Oil Yield Rate: compared with old and traditional oil press, the oil output rate of our oil press machine can be 5 to 8 percentage points higher. For example, use our oil press machine to process about 50 kg soybean can get about 3.5~4 kg crude soybean oil, which can greatly save cost and increase income.
  • Quality Guaranteed: every part of the oil press machine, from the smallest parts to the whole machine, is completely designed and manufactured by our own factory, so the quality and technical advantages of our oil press machine are not comparable to those produced or assembled by some small factories.
  • Long-term Performance: because the pressing ring and squeezer will wear out due to the extrusion and frictions. In order to increase the wear resistance coefficient, we updated the heat treatment equipment, improved the heat treatment temperature and the depth of carburizing to extend the service life of parts, further to reduce operational cost of users.
  • Small Occupation of Land: only needs a space of about 10 sq. ft. can start your own oil making workshop
  • High Efficiency, Energy Saving and Optimized Transmission: choose the most reasonable gear ratio and maximize the energy output to achieve the purpose of high efficiency and energy saving
