1~20TPD Small Solvent Cottonseed Oil Production Plant

HOME > Quick Links

Cottonseed, the seed of cotton plant, is a main oil crop in the world. The oil content is up to 35~45% and the protein content is about 39%. Cottonseed oil contains a lot of essential fatty acids for human consumption. The refined cottonseed oil is popular edible oil around the world. (Read more: Edible Oil Manufacturing Plant Cost >>)

New Cottonseed Oil Extraction
New Cottonseed Oil Extraction

How to Deal with High Residual Oil in Cottonseed Meal/Oil Cake?

The widely applied oil extraction methods for cottonseed oil production: Mechanical Pressing & Solvent Extraction. Usually, the cost to setup cottonseed oil mill plant by solvent extraction is much higher than that of mechanical pressing. But, solvent extraction technology can extract oil more completely, the residual oil ratio is less than 1%. The cottonseed oil cake from cottonseed oil processing plant that is designed with mechanical pressing technology may contain 8%~13% oil.

So, how to extract the oil in cottonseed meal to earn extra profits would be challenges for many cottonseed oil processing plants. The Mini/Small Scale Solvent Extraction Equipment designed by ABC Machinery offers a perfect solution! Check out the detailed cottonseed oil production process.

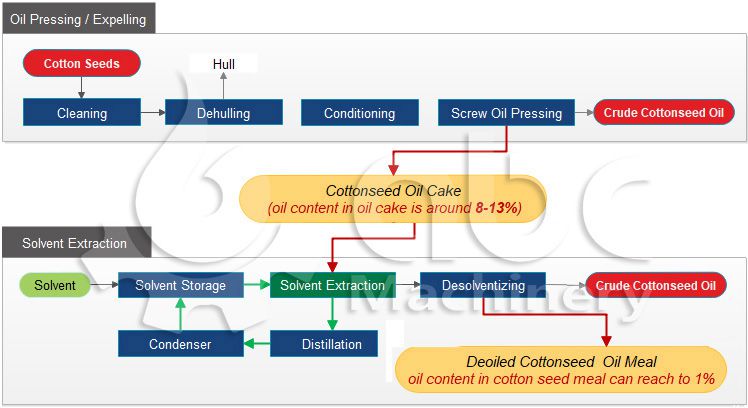

cottonseed cake oil extraction technology


Cost-effective Solutions for Cottonseed Oil Manufacturing Business

  • Investors who are interested in cottonseed oil processing.
  • Vegetable oil milling factories where produce bulk of oil cake every day.

Mini/Small Cottonseed Oil Production Line Layout Design - Solvent Extraction

The new small cottonseed oil production plant adopts solvent extraction technology to obtain the cottonseed oil from cottonseed oil cake since solvent extraction is now the most efficient and advanced oil extraction method internationally. (Read more: Cottonseed Oil Mill Machinery Price >>)

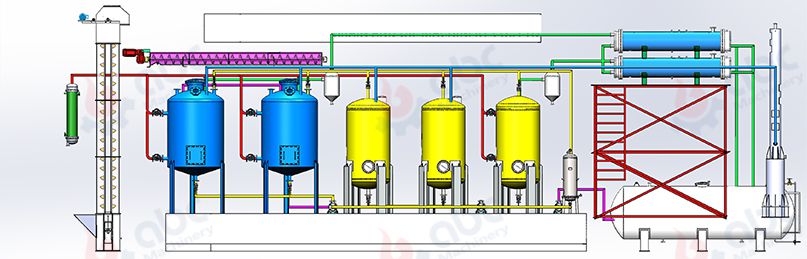

Small Cottonseed Oil Production Factory Layout Design
Small Cottonseed Oil Production Factory Layout Design

  • Capacity: 1~20 tons per day
  • Main Equipment: Solvent Extraction Pot Group
  • Applications: To extract oil from various oil cake and minimize the oil residual rate to 1%, like groundnut/peanut oil cake, rapeseed oil cake, sesame oil cake, soybean oil cake, etc..

inquire about the price and cost

Based on different requiremetns for cotton seed cake manufacturing, we provide two types of cottonseed oil production line. One is made from stainless steel, and the other is made from carbon steel. If you have any questions about the differences between our cottonseed oil processing machines, like price, technology, functions and etc., please contact us directly!

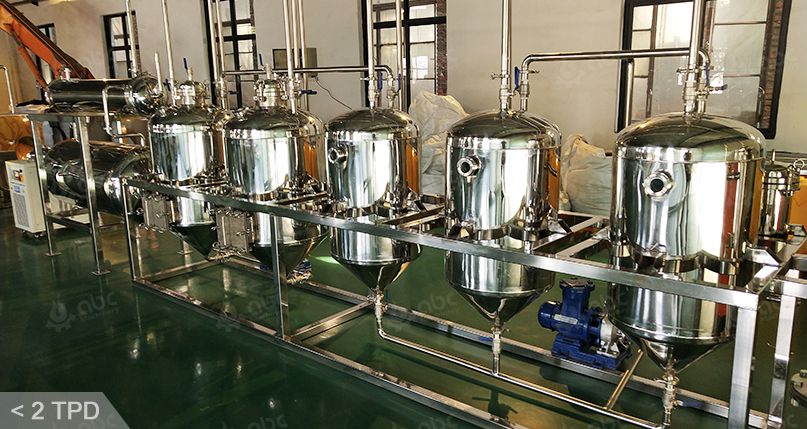

Customized Stainless Steel Mini Solvent Extraction Plant for Cottonseed Oil

Stainless Steel Solvent Extraction Machine for Cottonseed Oil
Stainless Steel Solvent Extraction Machine for Cottonseed Oil

Carbon Steel Small Solvent Extraction Plant Line for Cottonseed Oil


Stainless Steel Solvent Extraction Machine for Cottonseed Oil

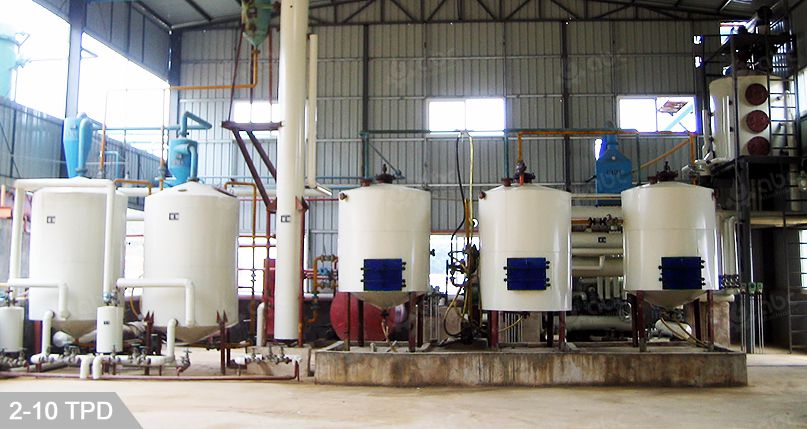

Small Scale Cottonseed Oil Extraction Plant



Price List of Cottonseed Oil Production Equipment

Model Capacity Estimated Cost Equipment Materials
Plot Scale
Plot Scale
<2 TPD 20,000~40,000 USD Stainless Steel or Carbon Steel
Small Scale
Small Scale
2~10 TPD 30,000~80,000 USD Stainless Steel or Carbon Steel
Middle Scale
Middle Scale
10~20 TPD 50,000~100,000 USD Carbon Steel

inquire about the price and cost

To get more detailed and exact cost to build a solvent cottonseed oil manufacturing factory, welcome to massage us your specific requirements!

How to Extract Cottonseed Oil by Solvent Extraction Method?

The principle of solvent extraction of cottonseed oil is based on the like dissolvent like in chemistry. When the pretreated cottonseed is contacted with hexane extraction solvent (soaking or spraying), the cottonseed oil can be extracted and mixed with solvents. And the solvent is completely evaporated by making use of the different boiling point of oil and solvent, and the cottonseed oil is obtained easily. (Similar project: Sunflower Oil and Soybean Oil Extraction Plant Setup in Kazakhstan >>)

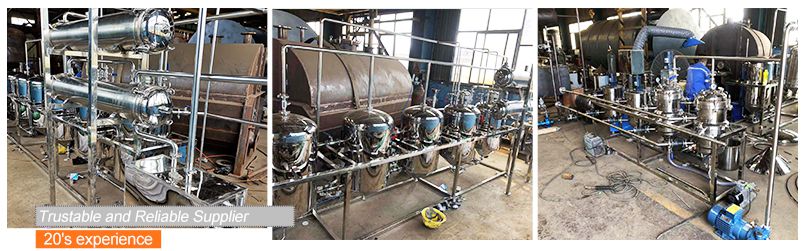

Setup Cottonseed Oil Production Extracton Plant
Setup Cottonseed Oil Production Extracton Plant

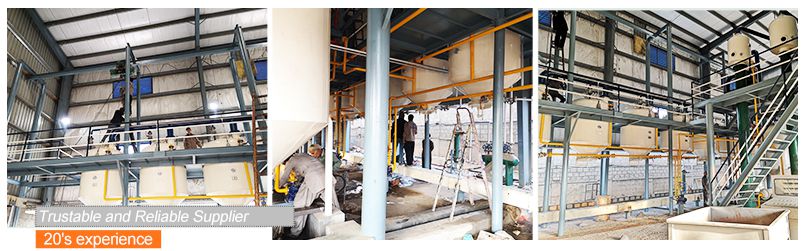

Small Cottonseed Oil Solvent Extraction Plant
Small Cottonseed Oil Solvent Extraction Plant

And the solvent is recycled and it is also suitable for other vegetable oils, like sesame seeds, peanut/groundnut, rapeseed, sunflower seeds, soybeans, etc.

Why Should Buy Small Solvent Extraction Plant for Cottonseed Oil Production?

  • High ROI: It requires less investment cost and the ROI is high and quick.
  • Easy Operation: The whole tank group for cotton seed oil extraction is easy to operate.
  • Energy-saving: The power consumption of this cotton seed oil production line is small. For example, a 10TPD solvent extraction plant only requires 20kw.
  • Superior Flexibility: It is suitable for various vegetable oil processing, including rapeseed, peanut/groundnut, sesame seeds, soybeans, etc., which makes it a great investment project for mini, small and medium scale edible oil production factory.
  • Easy Maintenances: If there are any production mistakes, it can only shut down the mistaken part for maintenances instead of stopping the whole oil production line. It is very practical in the actual production.
  • Low Production Cost: Low solvent consumption, low energy consumption and flexible maintenance help to minimize the oil manufacturing cost.

Customized Cottonseed Oil Production Line Setup by ABC Machinery [Project Report]

Mini/Small solvent extraction equipment for cottonseed oil production line setup – factory price oil processing equipment for cottonseed oil manufacturing: buy cottonseed oil production machine from professional oil mill machinery manufacturer or supplier at factory price, get FREE technical instruction of cotton seed oil extraction process and business plan to set up commercial cottonseed oil production project in Brazil, Australia, the U.S., Turkey, Myanmar, Uzbekistan, Afghanistan, etc., at low cost.

Start Cottonseed Oil Production Business

Cottonseed oil can effectively help to maintain human health by prevent the rise of cholesterol in blood due to its high linoleic acid content. With the elimination of the public’s negative perception of cottonseed oil and the promotion policies by many countries for cottonseed oil production, there will be a good development in cottonseed oil manufacturing industry. Thus, seizing this opportunity to set up your own cottonseed oil production plant would be a great way to success, especially in countries where cotton is largely planted. (Related project: 30TPD Cotton Seed Oil Refinery & Fractionation Plant in Afghanistan >>)

Start Cottonseed Oil Production Business
Start Cottonseed Oil Production Business

Cottonseed Oilseed Producer Production (1000MT) Cottonseed Oil Producer Production (1000MT) Cottonseed Meal Producer Production (1000MT)
India 12,100 India 1,390 India 4,510
China 10,400 China 1,339 China 3,986
United States 5,665 Brazil 618 Brazil 1,825
Brazil 3,927 Pakistan 403 Pakistan 1,210
Pakistan 2,729 United States 236 United States 758
Uzbekistan 1,273 Uzbekistan 197 Turkey 586
Turkey 1,077 Turkey 191 Uzbekistan 558
EU-27 623 Turkmenistan 60 Benin 174
Australia 510 Benin 58 Mali 162
Argentina 499 EU-27 57 Turkmenistan 162

Please Note: Cottonseed meal produced during cottonseed oil production process is an important and cheap raw materials to make animal feed. In this field, we can also offer customized solutions to turn cottonseed meal into nutritional feed. If there are any questions, please contact us for professional technical consultancy.
